Steel Aerosol Can

Shining Packaging, a leading Chinese manufacturer of three-piece steel aerosol cans, delivers innovative, high-quality packaging solutions tailored to your brand’s needs. Specializing in Necked-In (NI) and Straight-Sided (SS) designs, we utilize cutting-edge lithographic printing technology to create vibrant, shelf-ready designs that enhance your brand’s visibility. Our aerosol cans are certified to ISO and DOT standards, ensuring exceptional quality, reliability, and performance for a wide range of products.
Capacity

140–675 ml (4.7–26.7 oz)

Diameter

45 mm (112), 52 mm (202), 57 mm (205), 65 mm (211), 70 mm (214)

Pressure

Common: 1.3 MPa; 1.5 MPa
High Pressure: 1.5 MPa; 1.7 MPa
Special High Pressure: 1.8 MPa; 2.1 MPa

Printing

4-color printing (CMYK)

Internal Lacquer

Plain (tin coating only), Internal protective lacquer

MOQ

20,000 PCS / SKU

aerosol tin can Shapes

Our three-piece tinplate aerosol cans are available in Necked-In (NI) and Straight-Sided (SS) configurations. Whether you prefer the timeless elegance of Straight-Sided cans or the sleek, modern aesthetic of Necked-In cans, Shining Packaging offers customized solutions to align perfectly with your brand identity.

Necked-In (NI) Cans

Featuring tapered tops and bottoms, these cans provide a contemporary profile. Available diameters: 45 mm, 52 mm, 57 mm, 60 mm, 65 mm, 70 mm.

Straight-Sided (SS) Cans

With uniform diameter from top to bottom, these cans offer a classic, enduring look. Available diameters: 60 mm, 65 mm.

Steel Aerosol Can Sizes

Our aerosol tin cans are available in a versatile range of sizes, from 112(45mm) to 214(70mm) in diameter, offering tailored packaging solutions for diverse applications. This variety, combined with multiple pressure specifications, provides unmatched flexibility to meet your product volumes, formulations, and retail requirements.

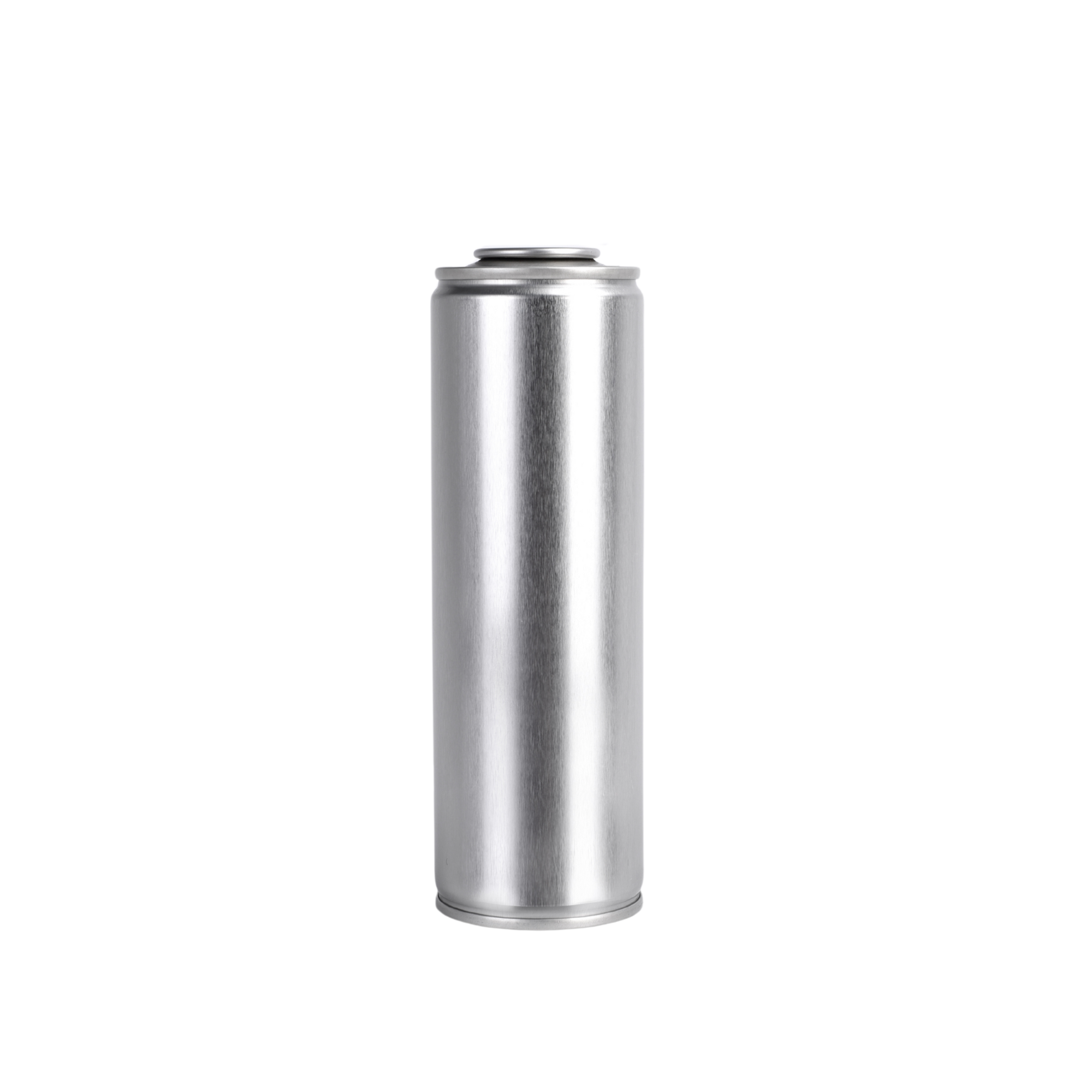

⌀45mm (112) / Necked-in

Height:85-180mm

⌀52mm (202) / Necked-in

Height:73-240mm

⌀57mm (205) / Necked-in

Height:100-240mm

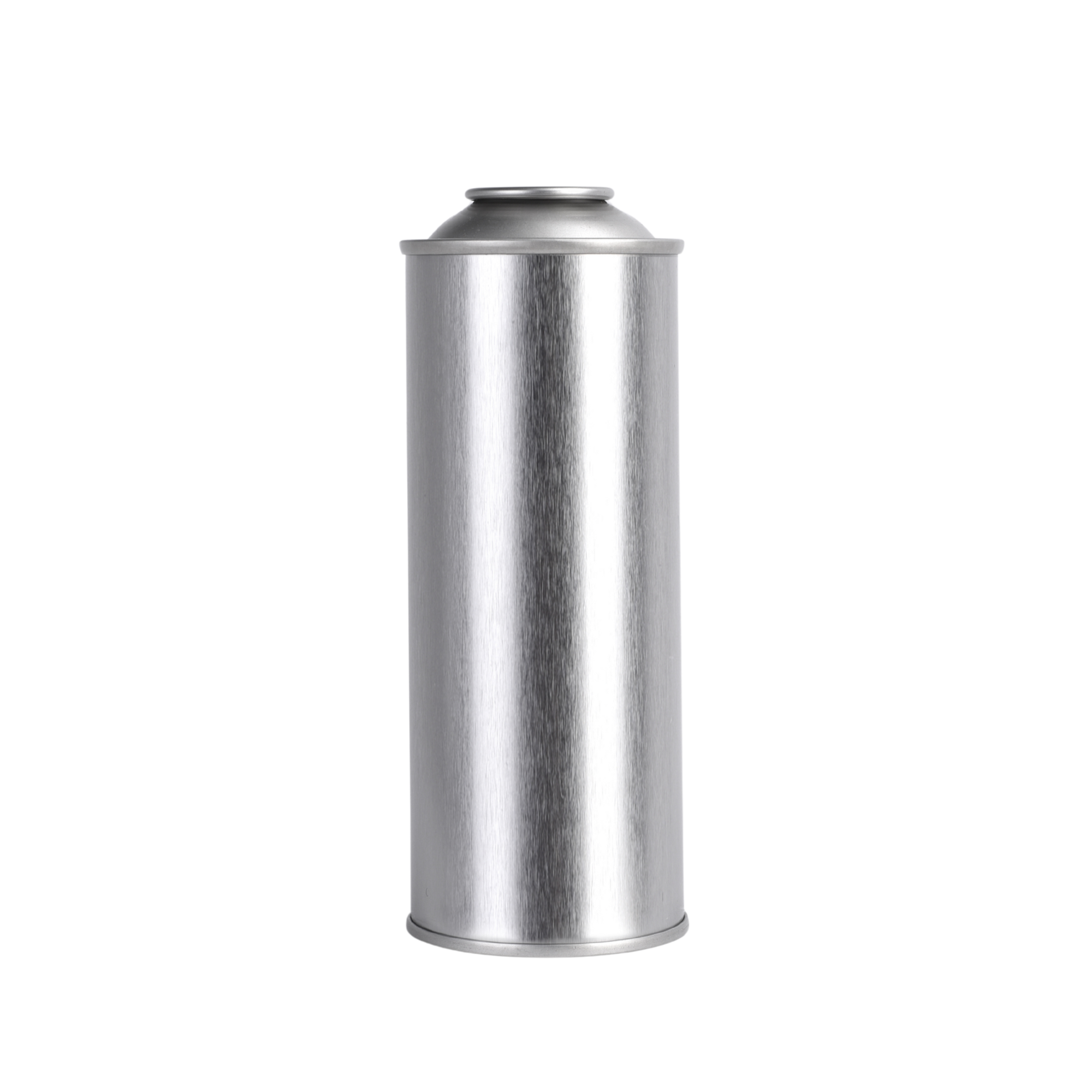

⌀60mm (206) / Necked-in

Height:100-240mm

⌀60mm (206) / Straight-wall

Height:100-240mm

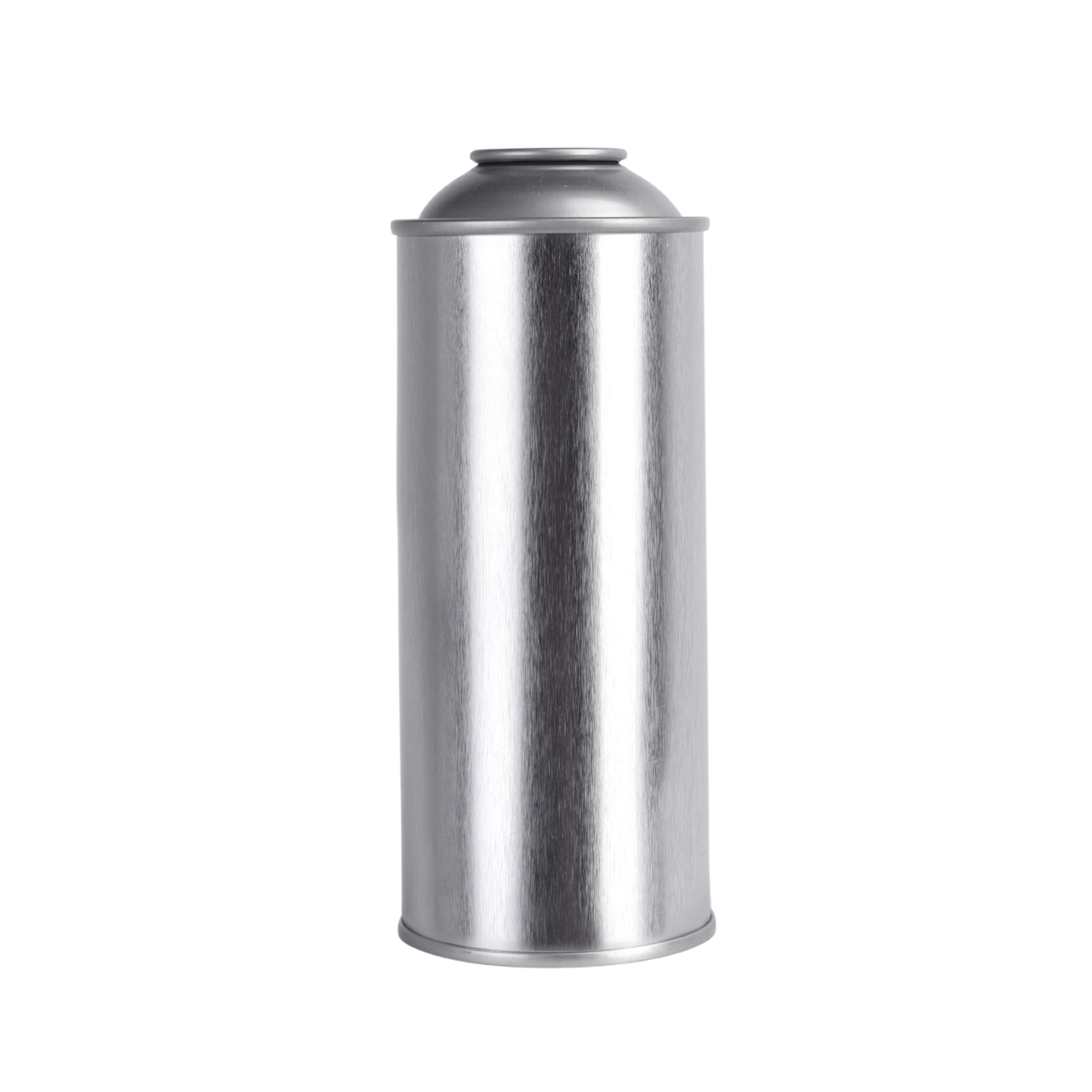

⌀65mm (211) / Necked-in

Height:98-300mm

⌀65mm (211) / Straight-wall

Height:98-240mm

⌀70mm (214) / Necked-in

Height:100-253mm

Volume (oz) Volume (ml) Can Size (US) Can Size (mm) Shape
4.7 140 112 x 312 45 x 96 NI
5.9 175 112 x 410 45 x 118 NI
7.1 210 112 x 508 45 x 140 NI
9.1 270 112 x700 45 x 178 NI
4.9 145 202 x 214 52 x 73 NI
6.1 179 202 x 306 52 x 86 NI
6.7 198 202 x 314 52 x 99 NI
7.6 225 202 x 406 52 x 110 NI
9.8 290 202 x 509 52 x 140 NI
10.4 309 202 x 514 52 x 149 NI
11.3 334 202 x 605 52 x 161 NI
12.4 367 202 x 700 52 x 178 NI
13.0 384 202 x 708 52 x 191 NI
16.4 485 202 x 903 52 x 234 NI
11.4 290 205 x 410 57 x 118 NI
13.5 396 205 x 604 57 x 159 NI
13.8 405 205 x 607 57 x 164 NI
15.5 458 205 x 704 57 x 185 NI
Volume (oz) Volume (ml) Can Size (US) Can Size (mm) Shape
16.3 482 205 x 710 57 x 194 NI
17.5 517 205 x 802 57 x 206 NI
17.7 525 205 x 804 57 x 209 NI
19.4 575 205 x 900 57 x 229 NI
11.0 325 211 x 315 65 x 100 NI
13.5 399 211 x 413 65 x 122 NI
17.6 520 211 x 604 65 x 158 NI
19.0 562 211 x 612 65 x 172 NI
22.0 651 211 x 713 65 x 198 NI
23.4 685 211 x 804 65 x 209 NI
26.8 789 211 x 908 65 x 241 NI
25.5 754 214 x 714 70 x 200 NI
26.7 789 214 x 804 70 x 209 NI
13.9 411 211 x 413 65 x 122 SS
17.6 532 211 x 604 65 x 158 SS
22.0 668 211 x 713 65 x 198 SS
26.7 790 211 x 908 65 x 241 SS
Key Features

Detail of Steel Aerosol Cans

01

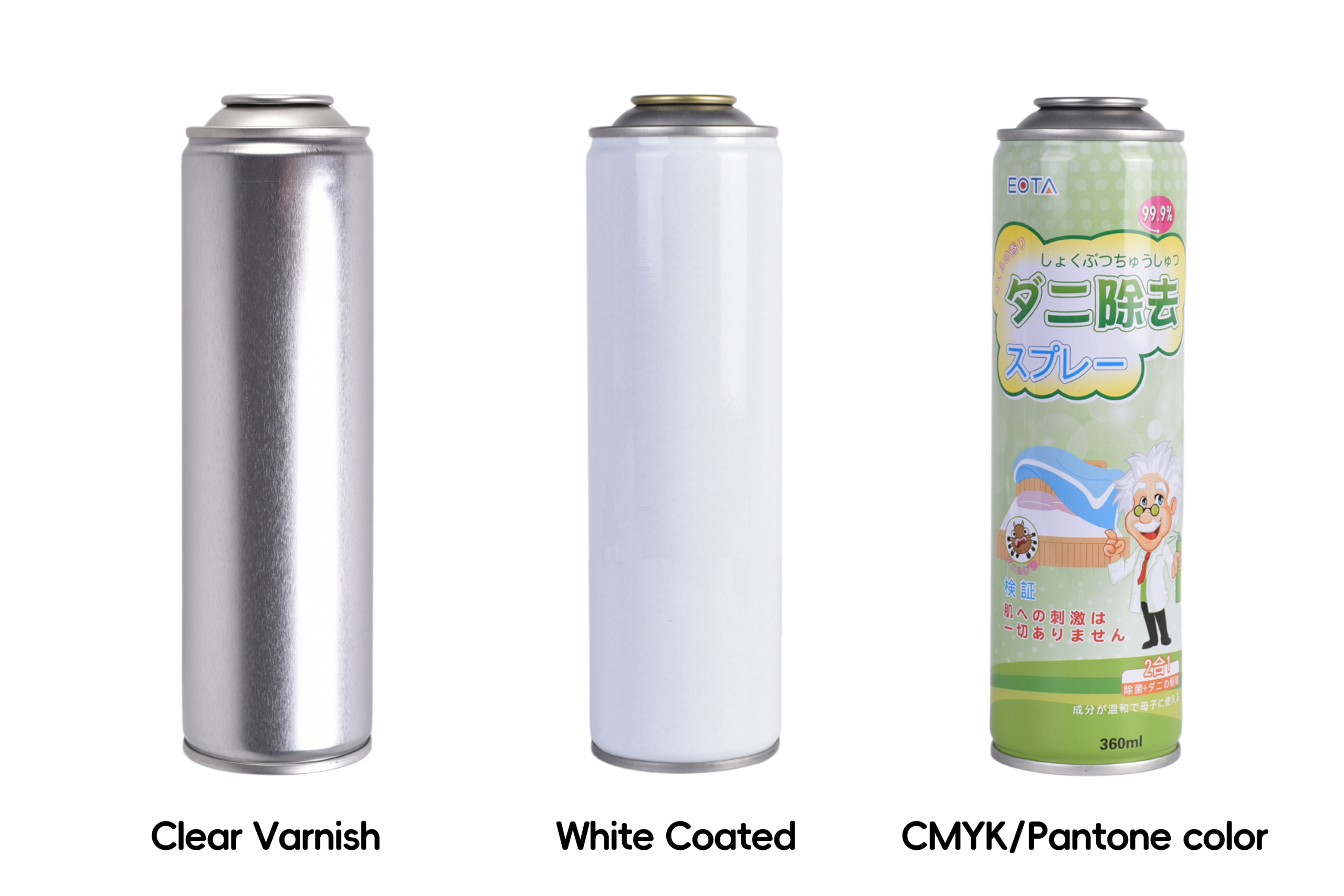

Printing Options

Our aerosol tin cans undergo a sophisticated printing process, featuring a clear varnish, white base coat, and vibrant CMYK four-color offset printing to ensure striking visuals and lasting durability.
  • Clear varnish
  • White base coat
  • CMYK printing
02

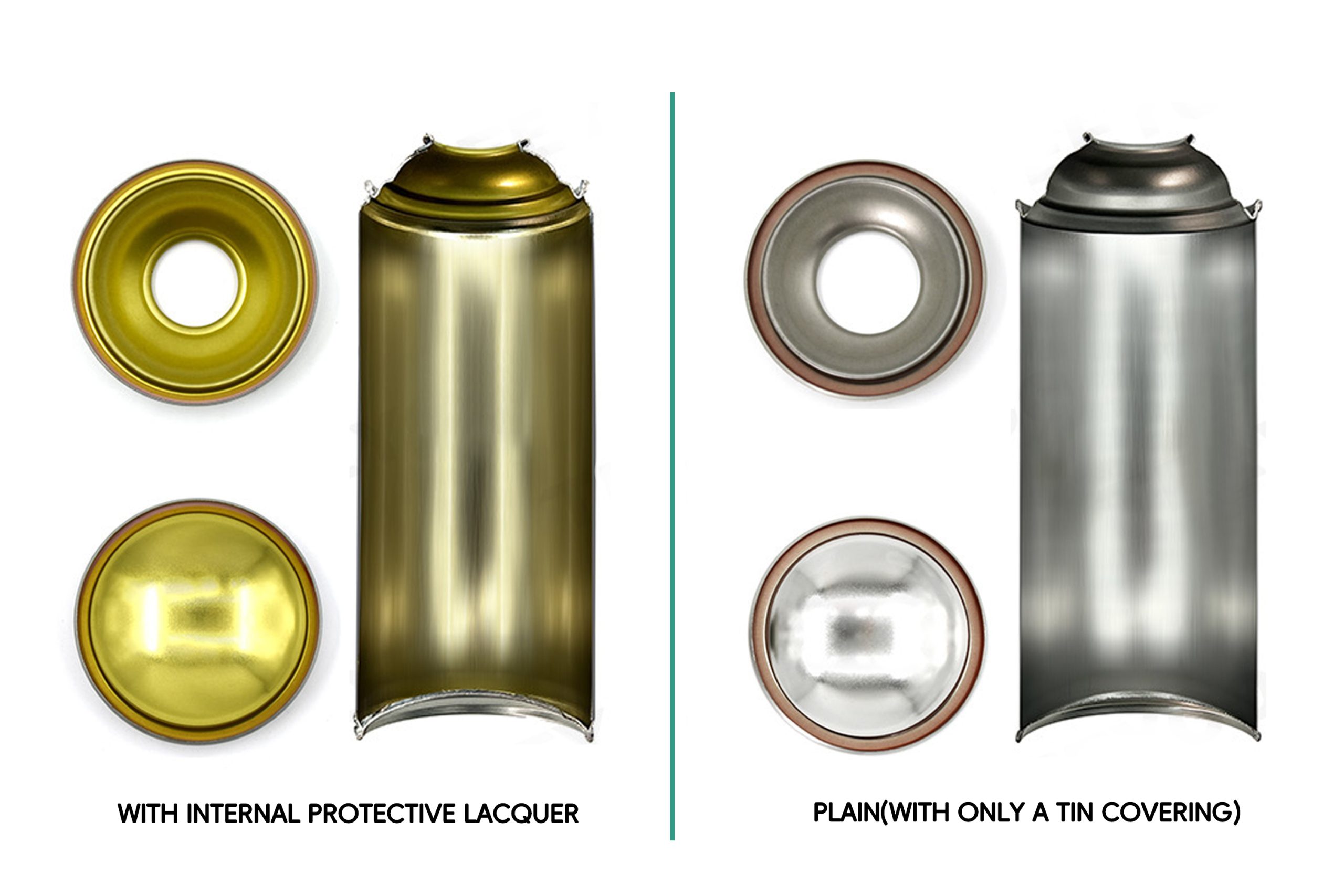

Interior coating

Available in coated and uncoated variants, our steel aerosol cans cater to diverse product requirements. The coated option includes a protective inner lining, ideal for products sensitive to metal contact or requiring enhanced protection. Uncoated cans are suitable for non-acidic or dry products, offering versatility and reliable performance.
  • Coated variants
  • Uncoated variants
03

Cones and Domes

Customize your steel aerosol cans with our range of cones and domes, designed for a secure and stylish finish. Available in various colors, coatings, and heights, these components combine functionality with a professional aesthetic tailored to your product’s needs.

  • Color options
  • coating options
  • Height options
04

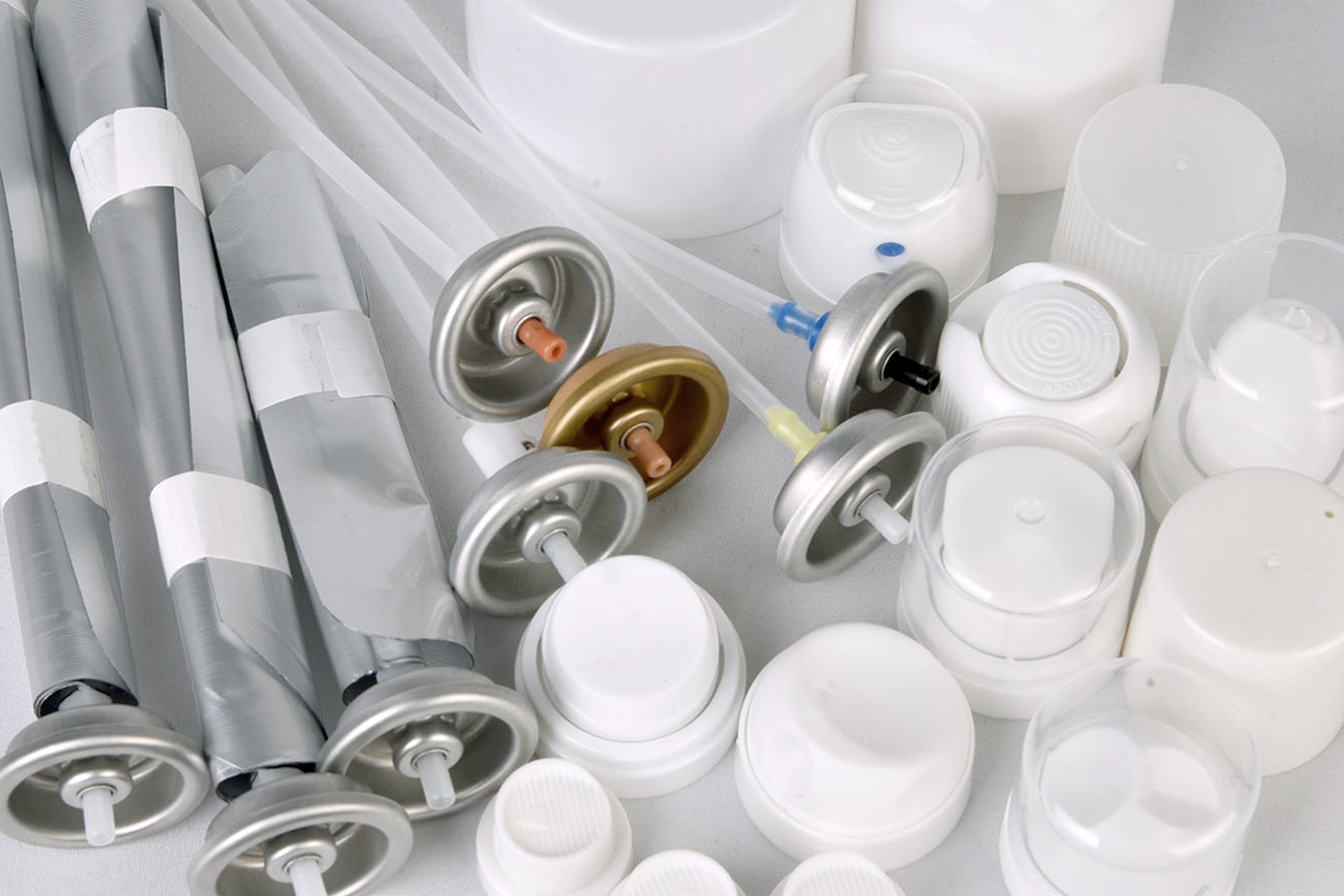

Actuator, Valve, and Overcap

We provide tailored accessory recommendations, including valves, actuators, and overcaps, based on your propellant and product requirements to ensure optimal performance and compatibility.
  • Aerosol valves
  • Actuator and nozzle
  • Aerosol Overcap

Steel Aerosol Can Gallery

DSC_6561
DSC_6573

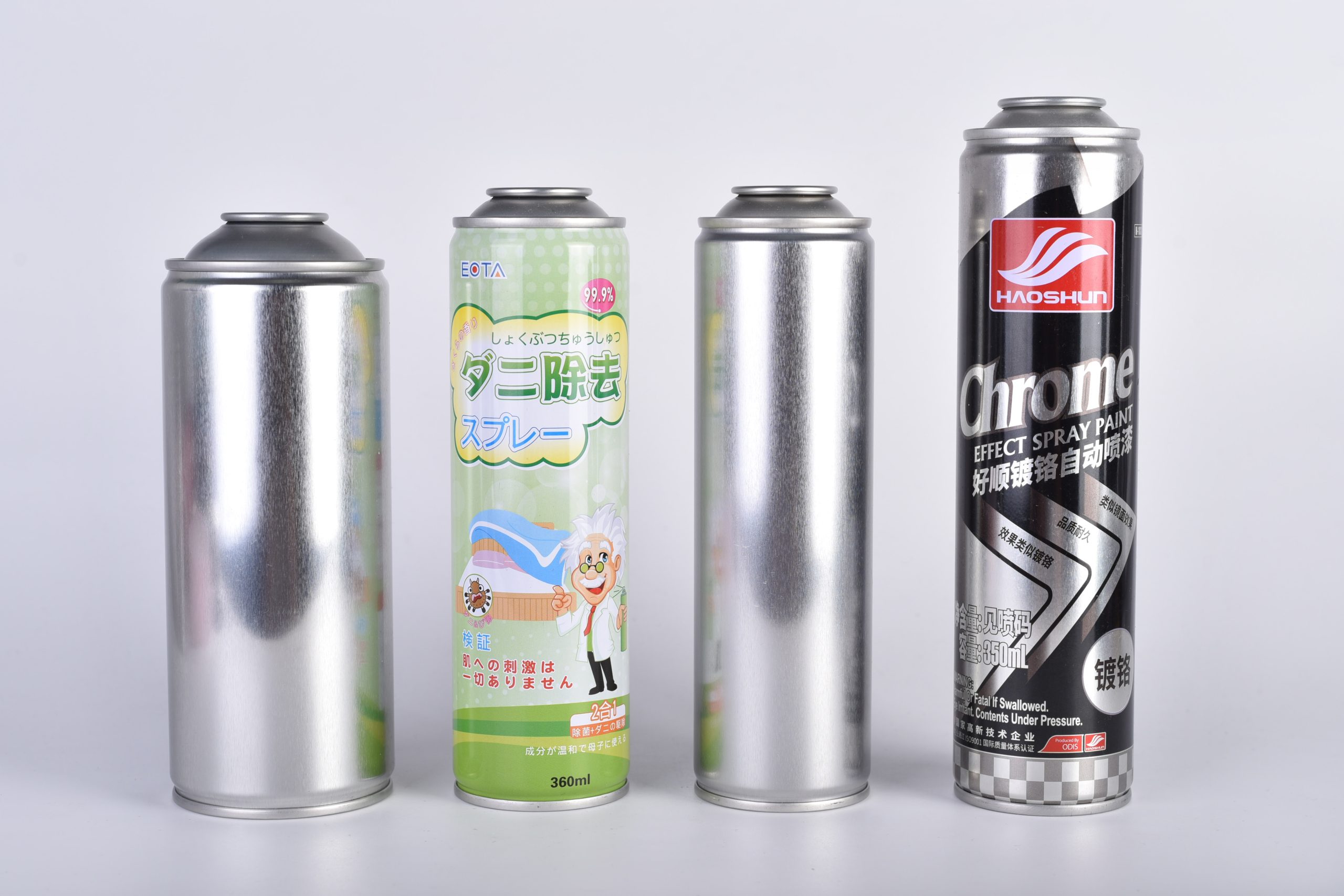

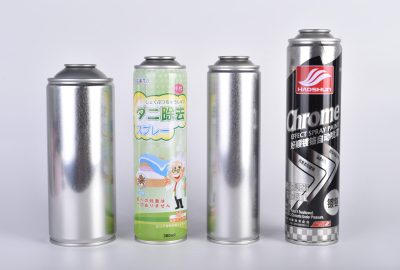

DSC_6571
DSC_6562
DSC_6574

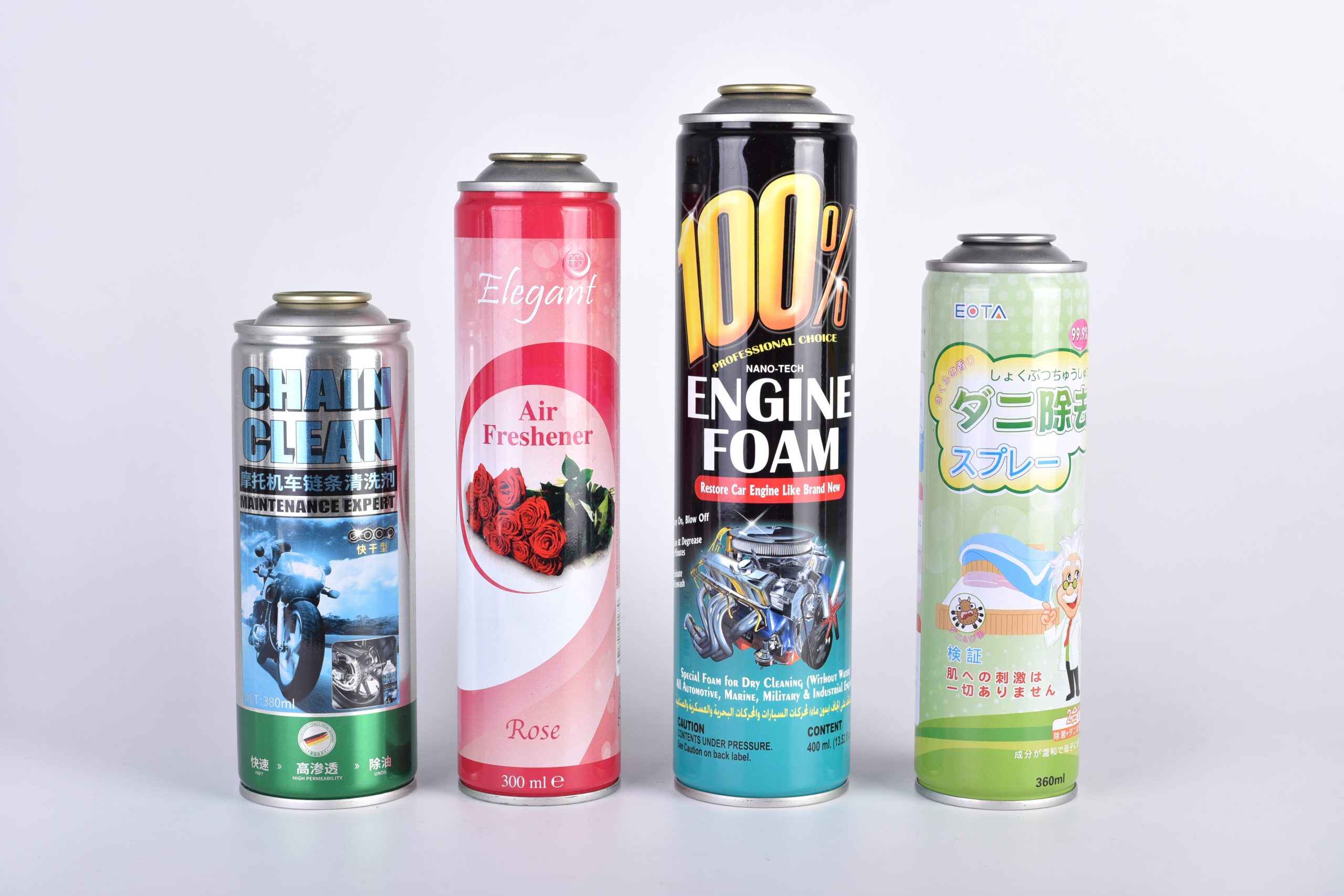

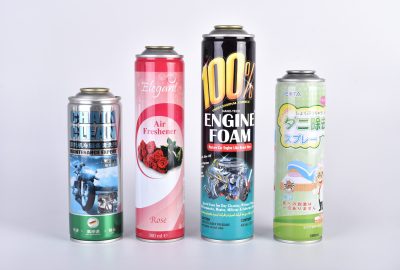

DSC_6566

Steel Aerosol Can Manufacturer

Shining Packaging leverages advanced manufacturing technology to produce premium aerosol tin cans. Our state-of-the-art equipment includes Swiss Soudronic welding machines (320 cans/min), German Lanico sealing machines with titanium molds (350 cans/min), and Italian Bonfiglioli & Basco leak testers (350 cans/min, 18-micron accuracy). Our comprehensive production process encompasses cutting, lacquering, drying, slitting, rolling, welding, side seam lacquering/drying, flanging, seaming, beading, and air testing.
WHY shining envase?

Steel Aerosol Can Supplier

Our steel aerosol cans are certified to ISO9001 and U.S. DOT standards. Our proprietary Triple Test Quality Standard ensures rigorous product testing, boosting manufacturing efficiency, enhancing quality, and minimizing defects.

Our Services

  • Product projection mapping
  • 3D renderings
  • Printing design draft
  • 3D printing
  • UV digital printing
  • Filling suggestions

Our Quality Control

  • Can height measurement
  • Double Seam Testing
  • Deformation and Burst Testing
  • Rockwell Hardness Testing
  • Digital Enamel Rating
  • Water Leakage Test

Steel Aerosol Can Products and Industries

Steel aerosol cans offer unmatched strength, durability, and high-pressure tolerance. Their dent- and impact-resistant construction makes them ideal for demanding environments, such as industrial, automotive, and workshop settings. Perfect for flammable or corrosive formulations requiring robust containment, they are well-suited for larger volumes and products demanding maximum internal pressure or ruggedness.

Home Care

Steel aerosol cans excel in housing aggressive home care formulations, such as solvent-based products or high-pressure propellants (e.g., insecticides). Their robust construction withstands garage storage conditions and accidental drops. The material’s resilience prevents corrosion from chlorine-based disinfectants or alcohol concentrates, while valve systems ensure effective delivery of viscous solutions. The can body provides reliable containment for volatile compounds requiring hazard warnings.
  • Aerosol cleaning
  • Aerosol spray for dogs
  • Aerosol insecticide

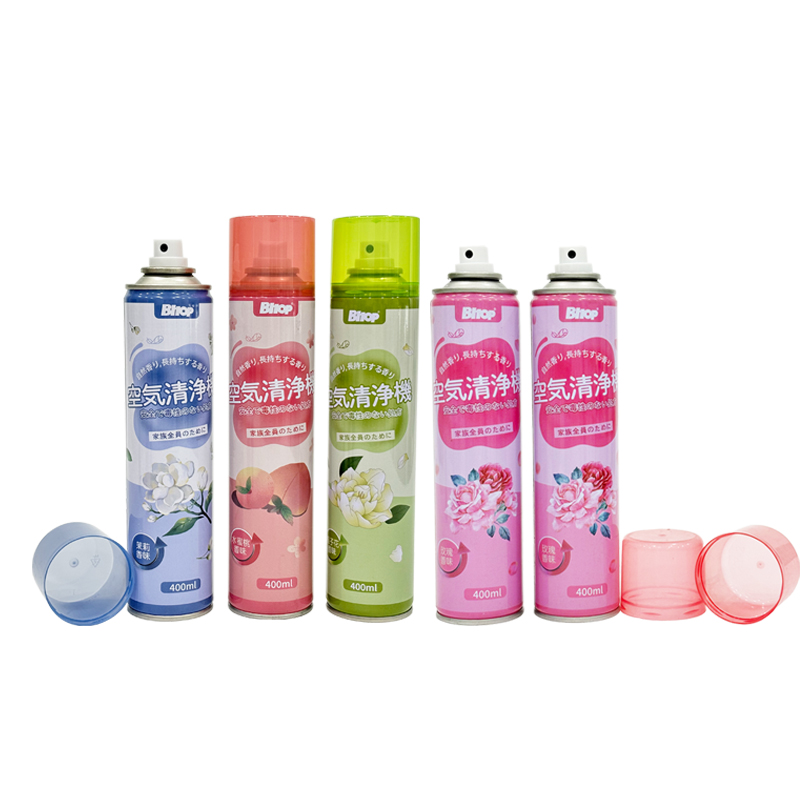

  • Aerosol air freshener
  • Peppermint aerosol spray
  • Aerosol disinfectant spray
  • Alcohol aerosol spray
  • Aerosol spray for keyboards

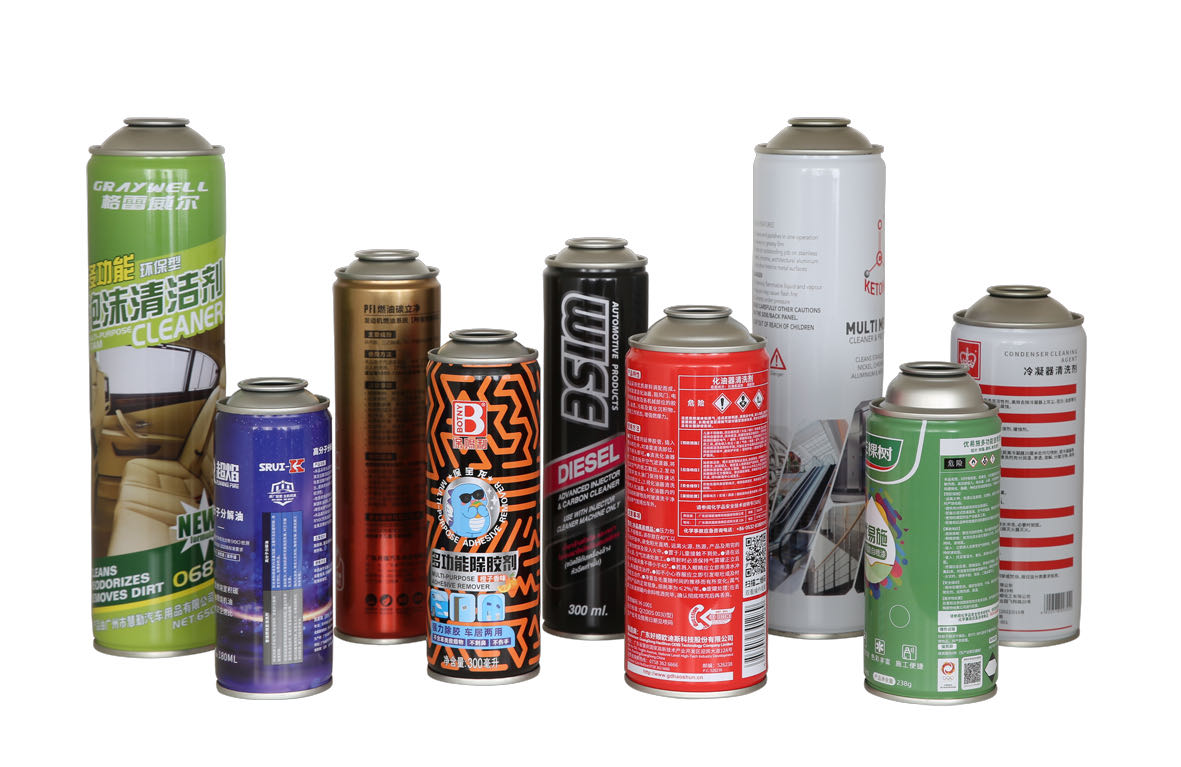

Auto Care

Steel aerosol cans are ideal for automotive applications, offering pressure resilience for flammable paints and solvents. They prevent leaks during high-temperature storage in workshops and provide structural strength to withstand impacts during transport of heavy products like bedliners. Specialized internal lacquers resist corrosion from brake cleaners or acidic wheel treatments, while nozzles ensure consistent delivery of high-viscosity materials like undercoatings under extreme conditions.
  • Car paint aerosol cans
  • Spray on bedliner aerosol can
  • Clear coat aerosol spray
  • Aerosol spray paint for wood
  • Aerosol wax spray
  • Aerosol paint colours
  • Glass frosting aerosol spray paint
  • Lubricant aerosol
  • Silicone aerosol spray

Industrial Chemicals

Steel aerosol cans are industrial workhorses, safely containing pressurized adhesives, expanding foams, and corrosive chemicals. Their dimensional stability ensures consistent valve alignment under high pressure for reliable spray patterns. Impact resistance prevents rupture on construction sites, and compatibility with aggressive solvents like acetone or methylene chloride makes them indispensable for specialty coatings and maintenance products. Larger sizes (400 ml+) offer material cost efficiency.
  • Water based aerosol spray paint
  • Aerosol glue spray
  • Aerosol fire extinguisher
  • Aerosol propellants
  • Anti slip aerosol spray
  • Aerosol smoke can
  • Polyurethane aerosol spray
  • Aerosol texture spray
  • Aerosol adhesive spray
  • co2 aerosol can

Technology and Professional

Steel aerosol cans are critical for technical applications requiring extreme pressure tolerance (e.g., refrigerant chargers) and cryogenic compatibility. Their secure containment prevents leakage of tracer gases or flammable propellants in sensitive environments. Rugged construction endures field use for smoke detector testing sprays, and material conductivity safely dissipates static in ESD-sensitive applications like circuit board cleaners.
  • Liquid nitrogen aerosol cans
  • Aerosol spray for smoke detector testing
  • Cfc aerosol cans
  • Compressed air aerosol cans

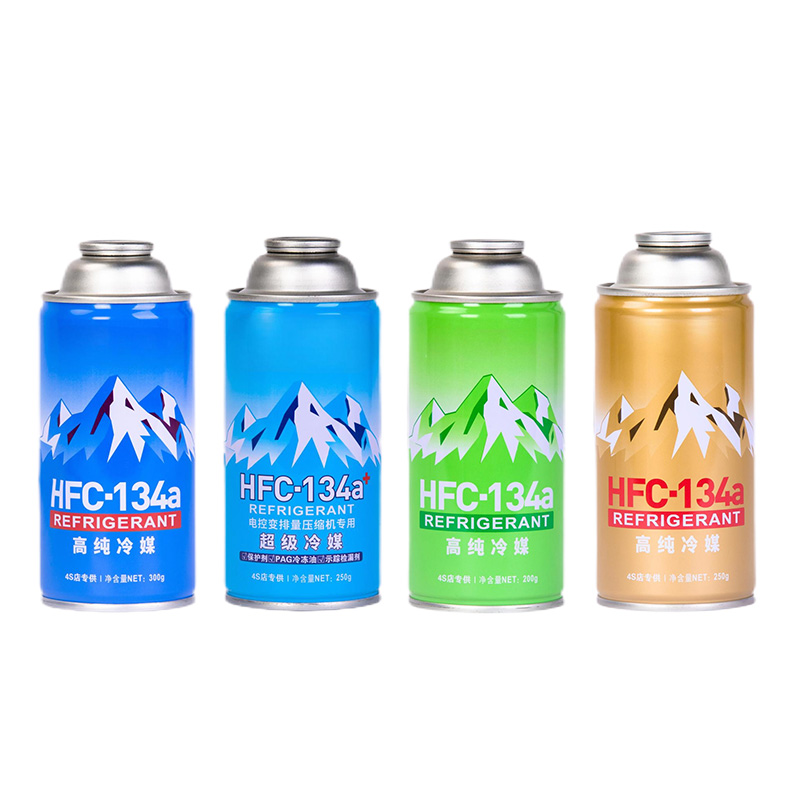

  • Aerosol refrigerant

Related Products

Personal Care →

Personal Care →

Personal Care →

Personal Care →

Have Questions?

Frequently asked question.

0086-574-87811501

sales@shiningenvase.com

A tinplate aerosol can is a single-use metal container made from tin-coated steel, designed to hold aerosol products like sprays or foams. These cans dispense contents under pressure via a valve system, making them ideal for industries such as cosmetics, pharmaceuticals, and household goods. With a maximum volume of 1000 ml and a standard 25.4 mm mouth diameter, they ensure compatibility with standard aerosol valves.

Tinplate aerosol cans are classified into two shapes:

  • Straight-Body Cans: Uniformly cylindrical with consistent diameter, offering a classic design.
  • Necked-In Cans: Tapered at the top or bottom for ergonomic handling or aesthetic appeal, often used with specific valve systems or for branding purposes.

Tinplate aerosol cans are engineered for varying pressure levels:

  • Standard Pressure Cans: Suitable for products with moderate internal pressure, such as personal care aerosols.
  • High-Pressure Cans: Designed for industrial or specialized products requiring higher internal pressure. All cans undergo rigorous testing to ensure safety and reliability against deformation and bursting.

Tinplate aerosol cans are crafted from tinplate, a thin steel sheet coated with a layer of tin to prevent corrosion. The steel provides structural strength, while internal and external coatings protect the can from the product inside and environmental factors. These coatings ensure the can remains durable, safe for the contents, and maintains a long shelf life.

  • Appearance Inspection: Conducted under natural or 40W lighting at a distance of 0.6 meters to check for surface defects.
  • Contact Height Measurement: Measured using a contact height gauge to ensure dimensional accuracy.
  • Coating Adhesion Test: Evaluates the durability of internal and external coatings to prevent corrosion.
  • Hardness Test: Assesses the external coating’s resistance to wear.
  • Air Tightness Test: Uses a water bath to detect leaks under pressure.
  • Pressure Testing: Verifies the can’s ability to withstand deformation and bursting pressures. These tests collectively ensure the cans meet high standards for safety and performance.
Air tightness is tested using a water bath method, where the can is pressurized and submerged in water. Any bubbles indicate a leak, ensuring the can maintains its seal under the internal pressure of the aerosol product. This test is essential to prevent product loss or safety issues during storage, transportation, or use, and is conducted under controlled conditions for accuracy.

The numbers 112, 202, 205, and 211 are industry-standard series numbers for steel aerosol can diameters, based on inches (whole inches + sixteenths). They are converted to millimeters using 1 inch = 25.4 mm.

  • 112: 1 + 12/16 = 1.75 inches ≈ 44.45 mm (often 45 mm).
  • 202: 2 + 2/16 = 2.125 inches ≈ 53.98 mm (often 52–54 mm).
  • 205: 2 + 5/16 = 2.3125 inches ≈ 58.74 mm (often 57–58 mm).
  • 211: 2 + 11/16 = 2.6875 inches ≈ 68.26 mm (often 65–68 mm).

Calculation: Diameter (inches) = X + Y/16, where X is whole inches and Y is sixteenths. Then, millimeters = inches × 25.4. Exact values may vary slightly per standards (e.g., FEA or DOT).
